Scanning using the Xerox MFDs

Printer-friendly versionPrinter-friendly version

With the introduction of the new Xerox MFDs to the School, the way in which scanning is done from MFDs has changed. This page details how scanning should be done on the new Xerox MFDs. This document applies to the Xerox WorkCentre 7535s found in the Forum and elsewhere.

How to scan a document

(Sorry for the quality of the accompanying images: they were taken directly from the copier display using a phone camera.)

When you first approach the copier, it may be in power-saving mode. This is indicated by a blank screen and a bright green light at the top-right of the control panel. Press the green light to wake the copier up. Documents can be scanned using the document feeder or by placing them directly on the glass. You can also specify whether the documents to be scanned are one- or two-sided. After the copier wakes up, the following screen should appear:

To begin scanning, press the button on the screen marked 'E-mail'. This screen will appear:

To select the email address(es) to which the scan should be sent, press the 'New Recipient...' button. This screen will appear:

Type in the first few characters of the name of the person you wish to send the scan to, and press the 'Search' button on the top right-hand side of the screen. After a few seconds, a list of all the names in the School's LDAP directory which match the characters you have typed in will appear. If the list covers more that one page, you can move through the pages using the arrows to the right of the list. Once you have found the name you want, tap it.

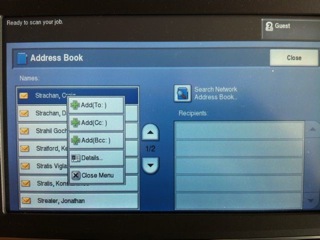

A sub-menu will appear allowing you to specify which field this address should appear in. Tap the appropriate option, then tap the 'Close' button at the top right-hand side of the screen.

You will return to the recipient selection screen. You can now add further recipients or change various other options such as the format and resolution of the scan by tapping the tabs at the top of the screen. You can also change the subject of the email containing the scan to something more informative by tapping the 'Subject:' button to the right of the recipient list.

Note that if you choose to manually enter a person's email address, and you mistype it or otherwise get it wrong, the scan will be sent to that incorrect address, but you'll not receive any notification that the delivery failed. It will just disappear into a blackhole.

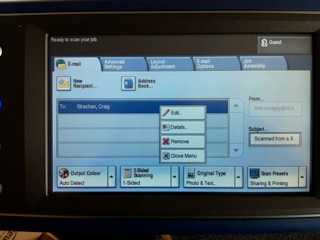

If you want to remove a name from the recipient list, tapping a name on the list will bring up a sub-menu allowing you to edit or remove this entry on the list:

When you are happy that all the settings are correct, press the large green button on the botton right of the control panel.

If the document being scanned is a regular size and shape, for instance an A4 sheet of paper, then scanning will begin. If the document is an irregular shape, the following screen will appear:

Press the 'Close' button on the top right of the screen. You will be taken to the 'Original Size' screen as seen below:

Choose the option which encompasses the item you are trying to scan and press the large green button on the bottom left of the control panel. The item should then be scanned.

After the scan has been completed, you should be returned to the recipient list. You can now go ahead and scan another item if you wish. If you do nothing, after a couple of minutes the recipient list will be cleared and the copier will go back into power-saving mode.

For more details about the advanced scanning options, please see the on-line manual which can be found here.
